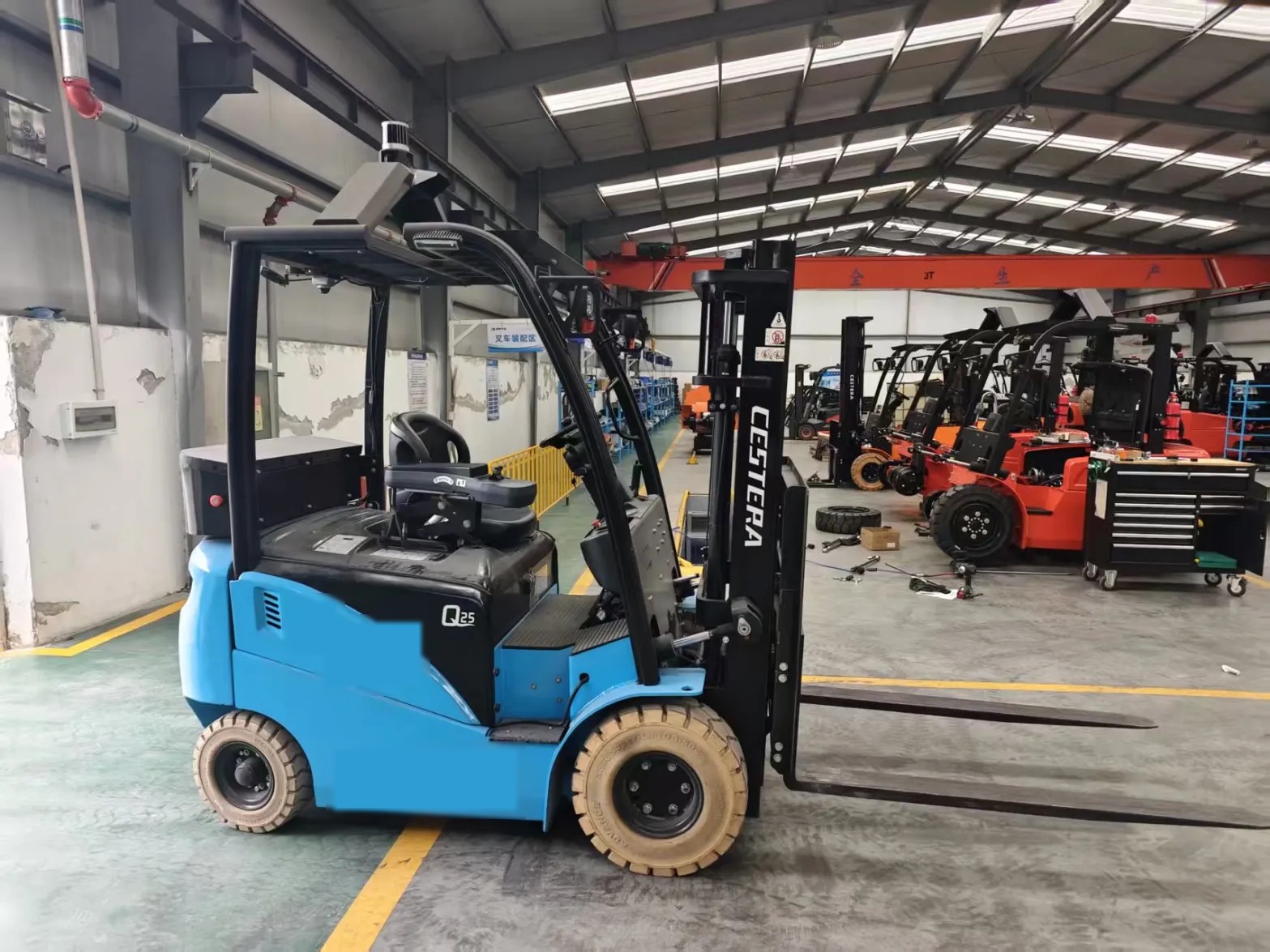

Compact Autonomous Counterbalance Forklift

The FL200E is a 2-tonne autonomous electric counterbalance forklift built for indoor logistics — pallet transfer, racking access, and dock work without a driver on board. Reflector-free laser SLAM builds its own plant-wide map, so deployment needs no floor markers and rerouting is a software edit. The C32 main LiDAR works with front and rear blind-spot sensors for 360° layered awareness, while fork-tip sensing detects pallet pockets and centers the forks automatically at up to 3 m lift height.

2,000 kg Rated Load
3,000 mm Lift Height
80 V / 205 Ah Battery
2,350 mm Turning Radius

Autonomy Suite

1 2 2 3 3 4 4 5 6 7 8
  1. Main LiDAR (C32) — 360° perception; builds the navigation map and localizes the vehicle
  2. Fork-Tip LiDAR (×2) — pallet pocket detection, fork spacing and seat-depth adaptation
  3. Front Blind-Spot LiDAR (×2) — covers the raised-fork shadow zone; halts the vehicle on intrusion
  4. Rear Blind-Spot LiDAR (×2) — counterweight corners, reversing coverage
  5. Load-Pose Sensor — watches cargo position on the forks; stops the vehicle if a load shifts
  6. Vision Cameras — live remote monitoring of vehicle and workspace
  7. Audio-Visual Beacon — 4-mode voice & strobe warnings by priority
  8. Safety Edge Bumpers — contact-triggered emergency stop, front and rear

Drops Into Your Plant

MES
ERP
WMS
3rd-party systems
WCSLine-side buffer & station management
RCS Fleet ManagementMap & data management · scheduling simulation · traffic control · dispatch algorithms
FL200E fleet
AGV / AMR
Elevators
Robot arms
Conveyors

No floor markers or reflectors required — the vehicles build their own map; rerouting is a software edit, not a construction project.

Key Features

Specifications

Dimensions & Weight

Length to Fork Face
2,310 mm
Overall Width
1,260 mm
Overall Height
2,180 mm
Curb Weight
4,214 kg
Lift Height
3,000 mm

Performance

Rated Load
2,000 kg
Travel Speed
≤ 15 km/h
Max Gradeability
15 %
Turning Radius
2,350 mm

Powertrain

Travel Motor
10 kW
Lift Motor
16.5 kW
Battery
80 V / 205 Ah lithium
Operating Temperature
-25 to 55 °C
