FL300E

FL300E

Autonomous Counterbalance Forklift

The FL300E scales the same autonomous platform to 3 tonnes — heavier pallets, longer routes, and outdoor-to-indoor transfers without a driver. The full autonomy suite ships standard: reflector-free laser SLAM navigation, a C32 main LiDAR with layered blind-spot coverage, fork-tip pallet sensing with adaptive fork centering, and fleet-level RCS scheduling that integrates with existing MES/ERP/WMS environments through the WCS layer.

3,000 kg Rated Load
3,000 mm Lift Height
80 V / 420 Ah Battery
2,380 mm Turning Radius

Engineering in Detail

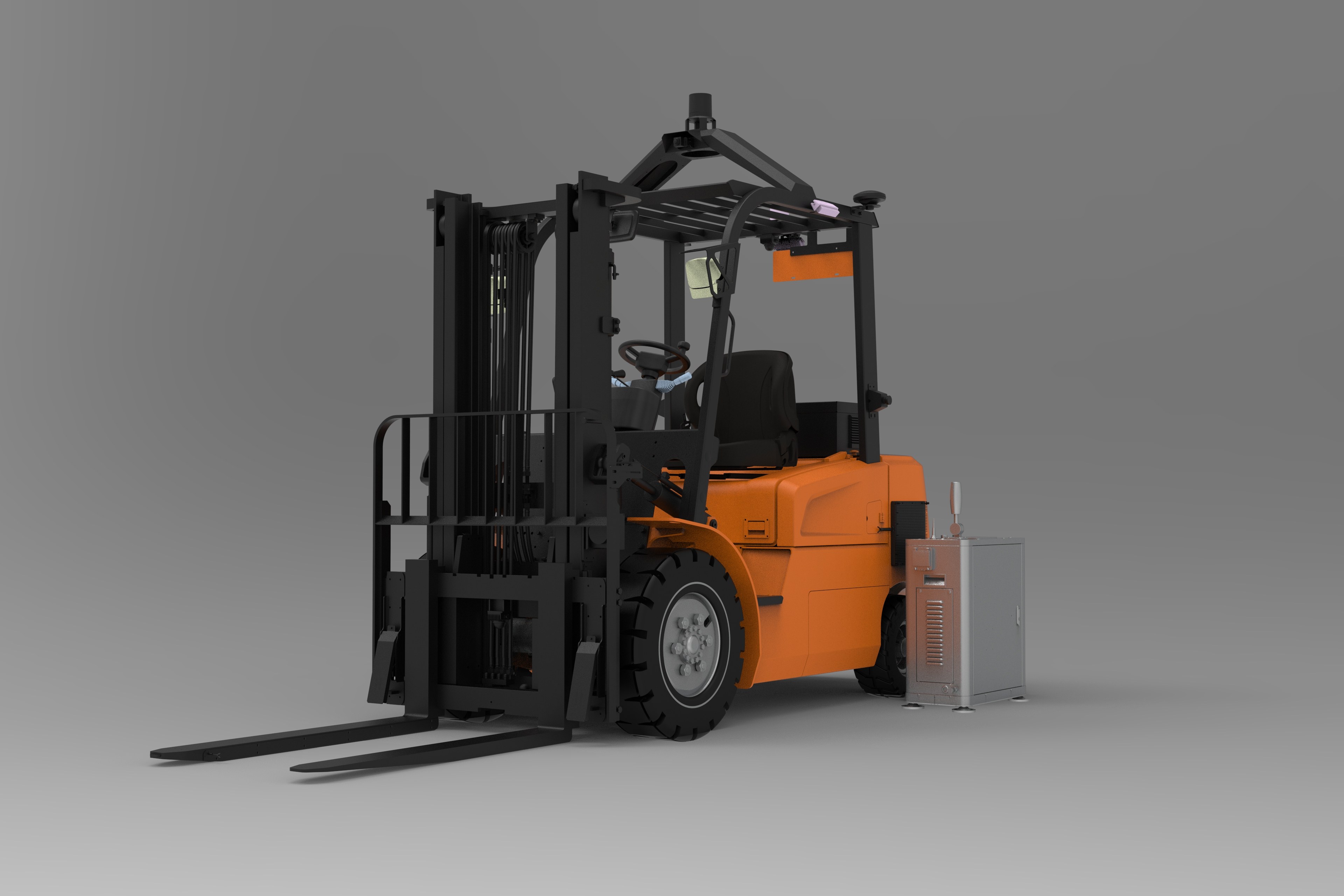

FL300E docked at a wireless charging station
Contactless wireless charging — magnetic-resonance energy transfer with no plugs and no wear contacts. The 6 kW dock runs a 7-inch touch panel for charge control, status, data and fault logging.

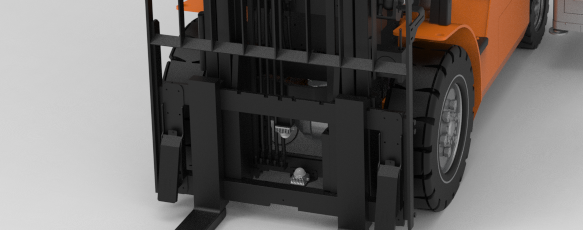

Fork carriage and tip sensors
Fork-tip LiDAR reads pallet edges and pocket positions on the line, then adjusts body and fork attitude so every pick seats squarely.

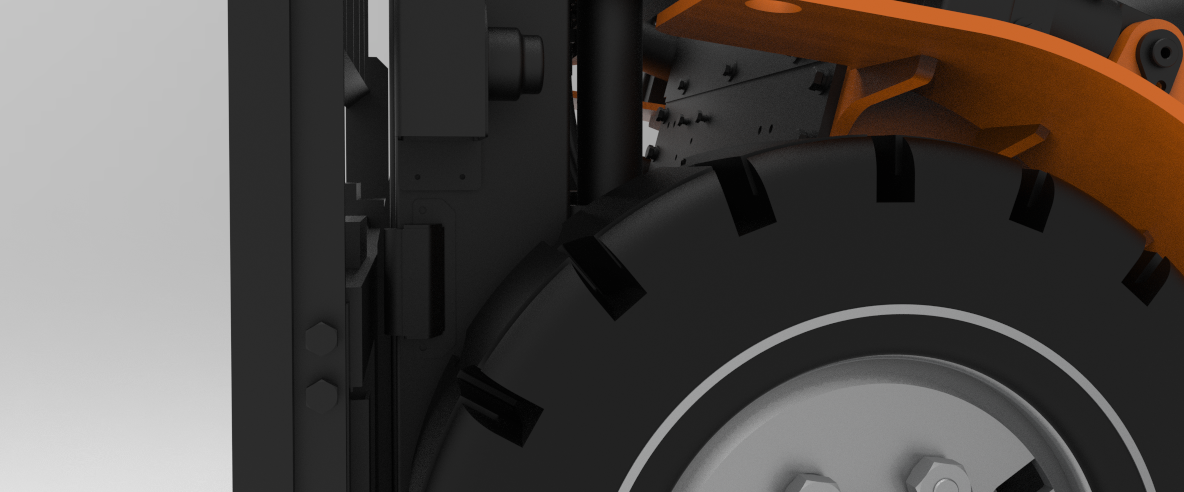

Mast and drive-end detail
Layered obstacle avoidance: the C32 main LiDAR plus supplementary sensors eliminate blind zones — on approach the truck slows, brakes, and stops outside the safety envelope.

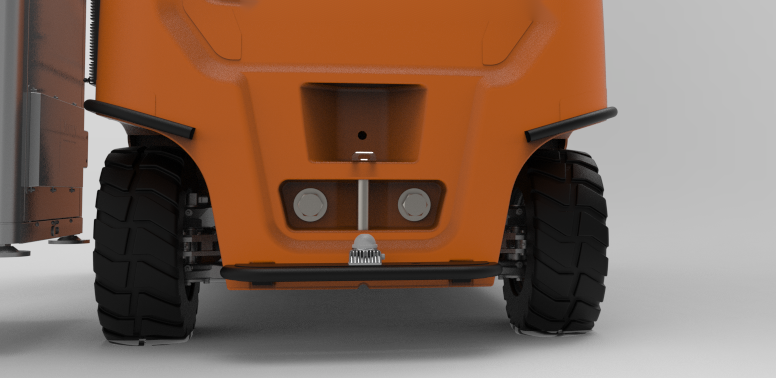

Rear counterweight with charging interface
Rear blind-spot LiDARs and contact safety edges cover the counterweight swing zone; any intrusion or contact stops the vehicle immediately.

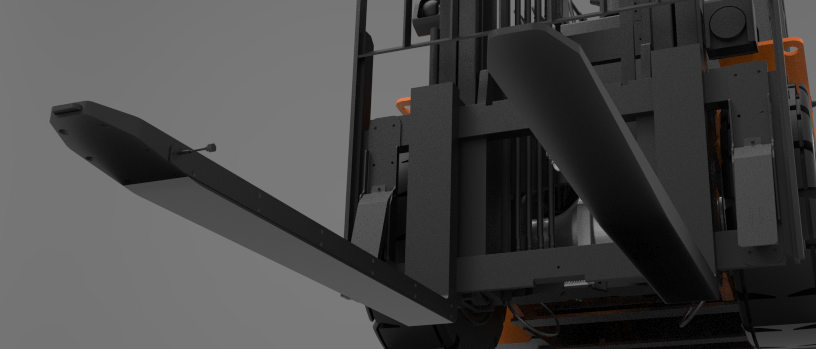

Low-angle view of fork tips and carriage sensors
Fork-level sensing keeps working at ground level — the carriage reads pallet pockets even on low-slung stillages.

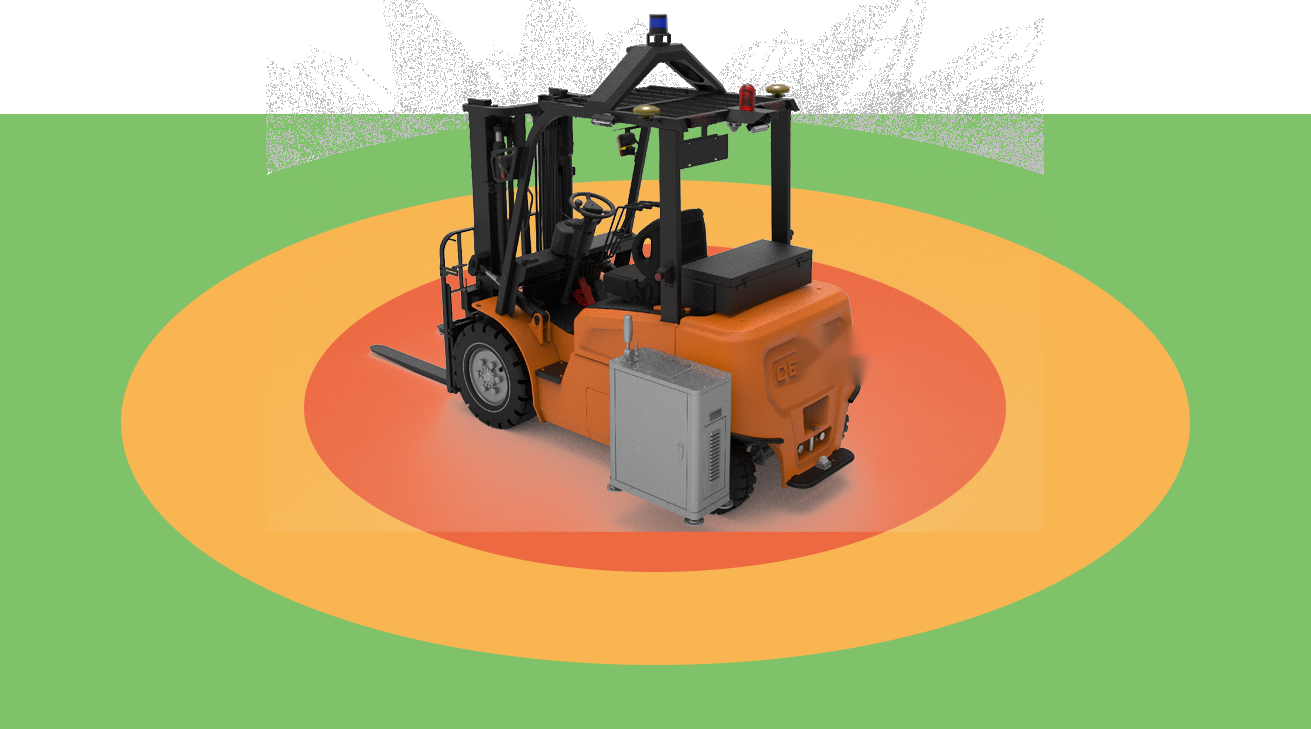

Graded detection zones around the vehicle
Graded safety field — the audio-visual system escalates by zone in priority order: voice alert, steady light, strobe, and emergency stop.

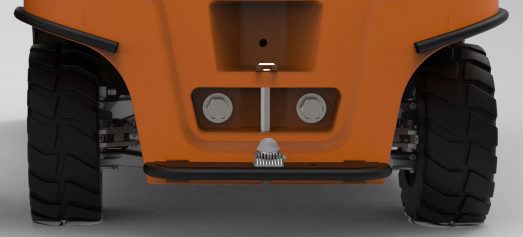

Rear counterweight sensors and safety edge
Twin rear sensors and a full-width contact edge guard the counterweight arc — the most common pinch point in reversing.

In the Field

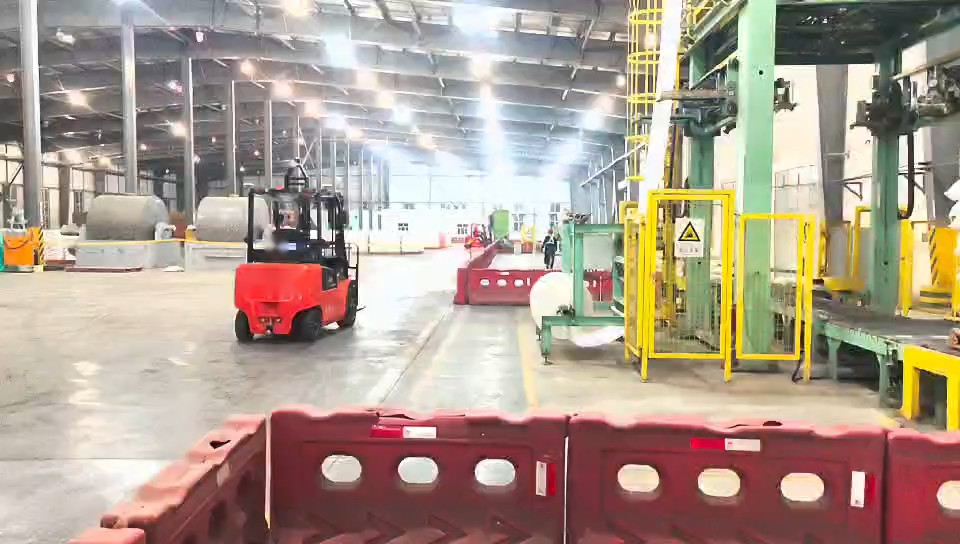

FL300E transferring material in a chemical plant
Chemical-plant transfer: unmanned runs between the semi-finished area, welding line, and finished-goods staging, closed-loop with the site WMS.

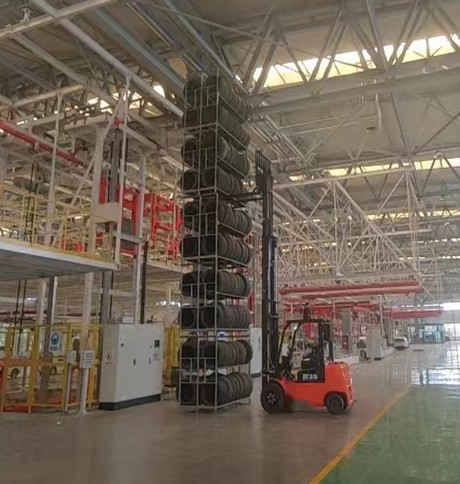

FL300E stacking tire racks ten high
Tire-plant warehouse: rack stacking to ten levels high, where manual stacking efficiency drops off sharply above layer four.

Specifications

Dimensions & Weight

Overall Length
3,652 mm
Overall Width
1,230 mm
Overall Height
2,145 mm
Curb Weight
4,230 kg
Lift Height
3,000 mm

Performance

Rated Load
3,000 kg
Travel Speed
≤ 15 km/h
Max Gradeability
20 %
Turning Radius
2,380 mm

Powertrain

Travel Motor
12 kW
Lift Motor
21 kW
Battery
80 V / 420 Ah lithium
Operating Temperature
-25 to 55 °C
