Forged & Flow-Formed Wheels

An Engineering Library, Not a Catalog

Our wheel program covers monoblock forging and flow-forming, from standard street profiles to deep-concave show fitments — and from lightweight racing rims to load-rated truck and beadlock off-road wheels. Eighty-two production-proven designs are already in the engineering library; any of them can be re-drilled, re-width-ed, or redrawn for your application.

Engineering section drawing, JR200-220503 — JR200-220503 — 22×5.0J section

Engineering section drawing, JR202-198003 — JR202-198003 — 19×8.0J section

Engineering section drawing, JR200-229004 — JR200-229004 — 22×9.0J wide section

Engineering section drawing, JR200-229504 — JR200-229504 — 22×9.5J deep section

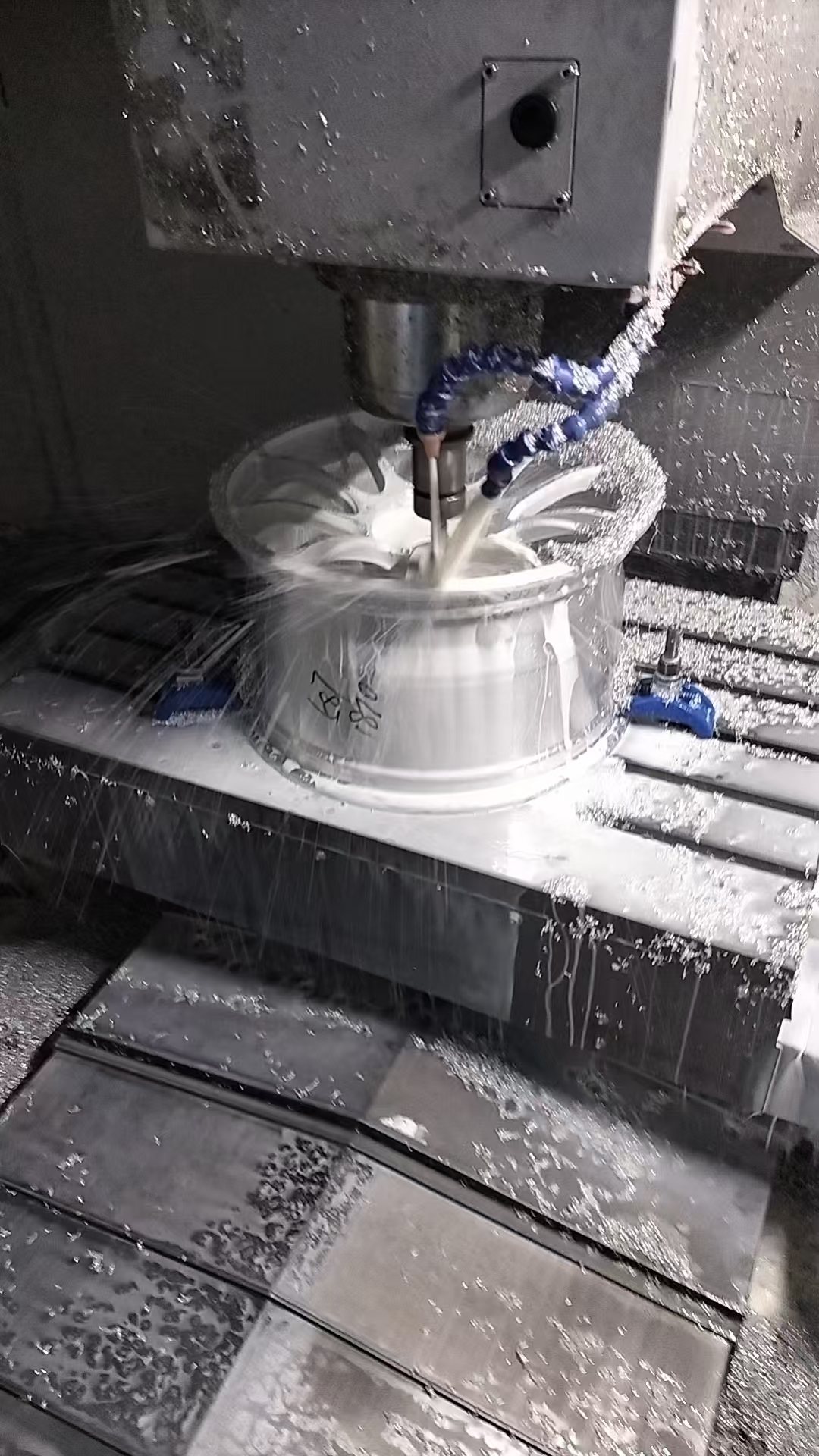

CNC machining a forged wheel — Final CNC pass on a forged monoblock — every face is machined, never cast to shape.

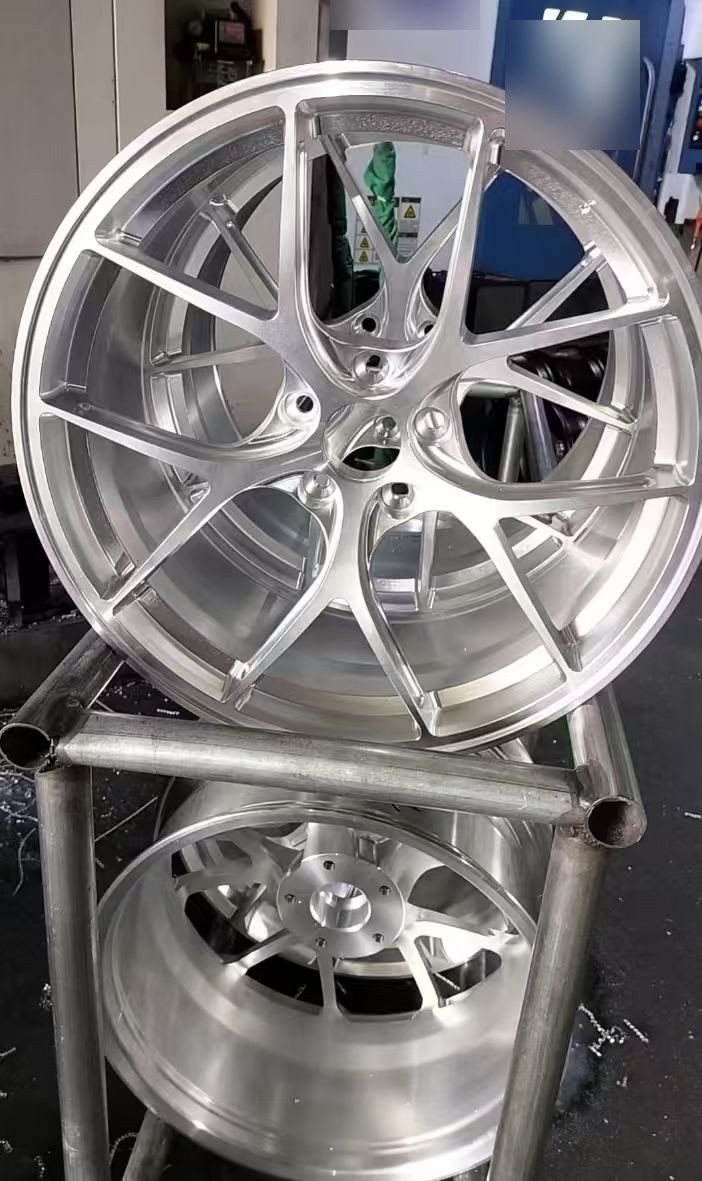

Freshly machined forged wheels — Straight off the mill: machined forgings awaiting finishing.

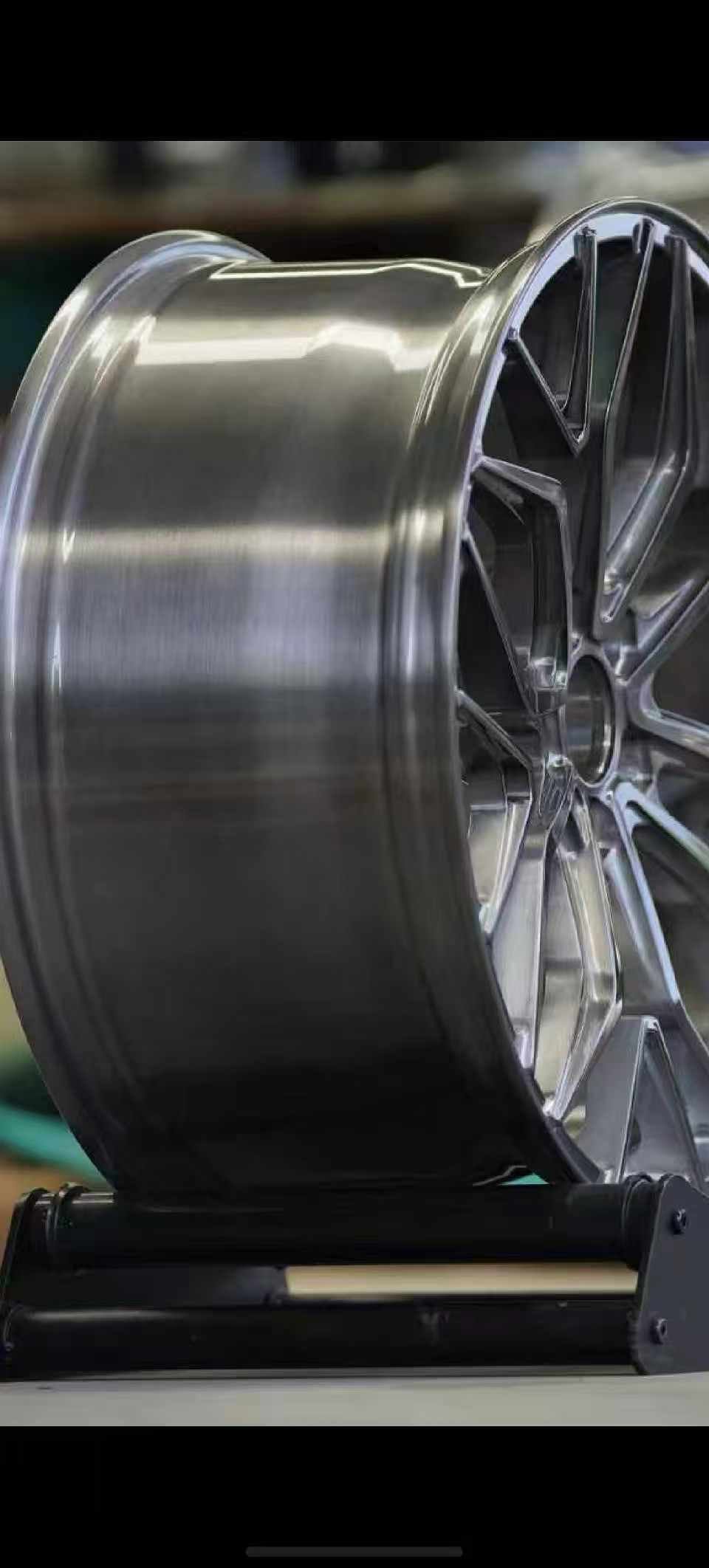

Flow-formed barrel — rotary-forged rim strength at a fraction of full-forging cost.

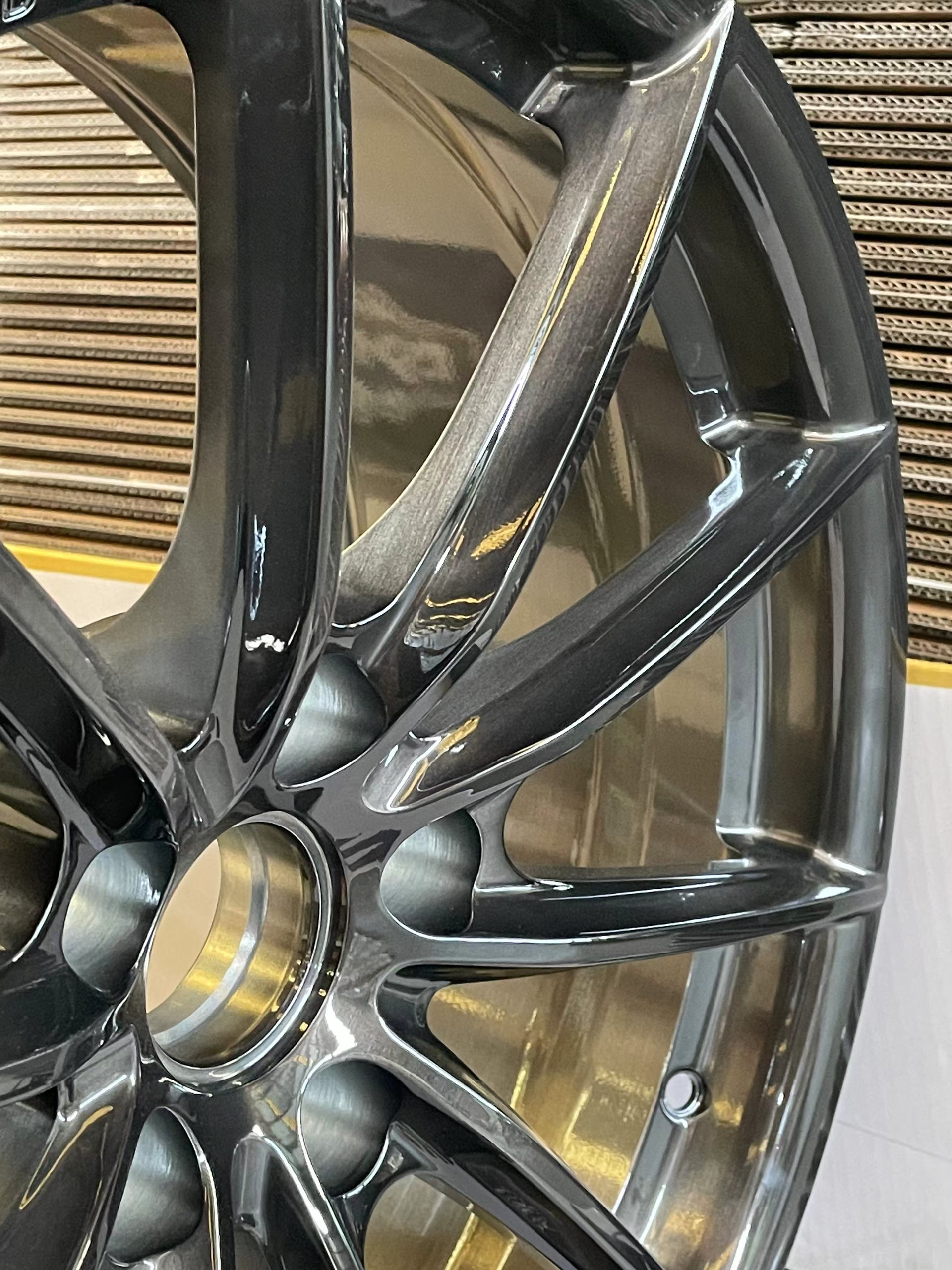

Machined spoke and barrel detail — Spoke and barrel detail — the surface tells you how it was made.

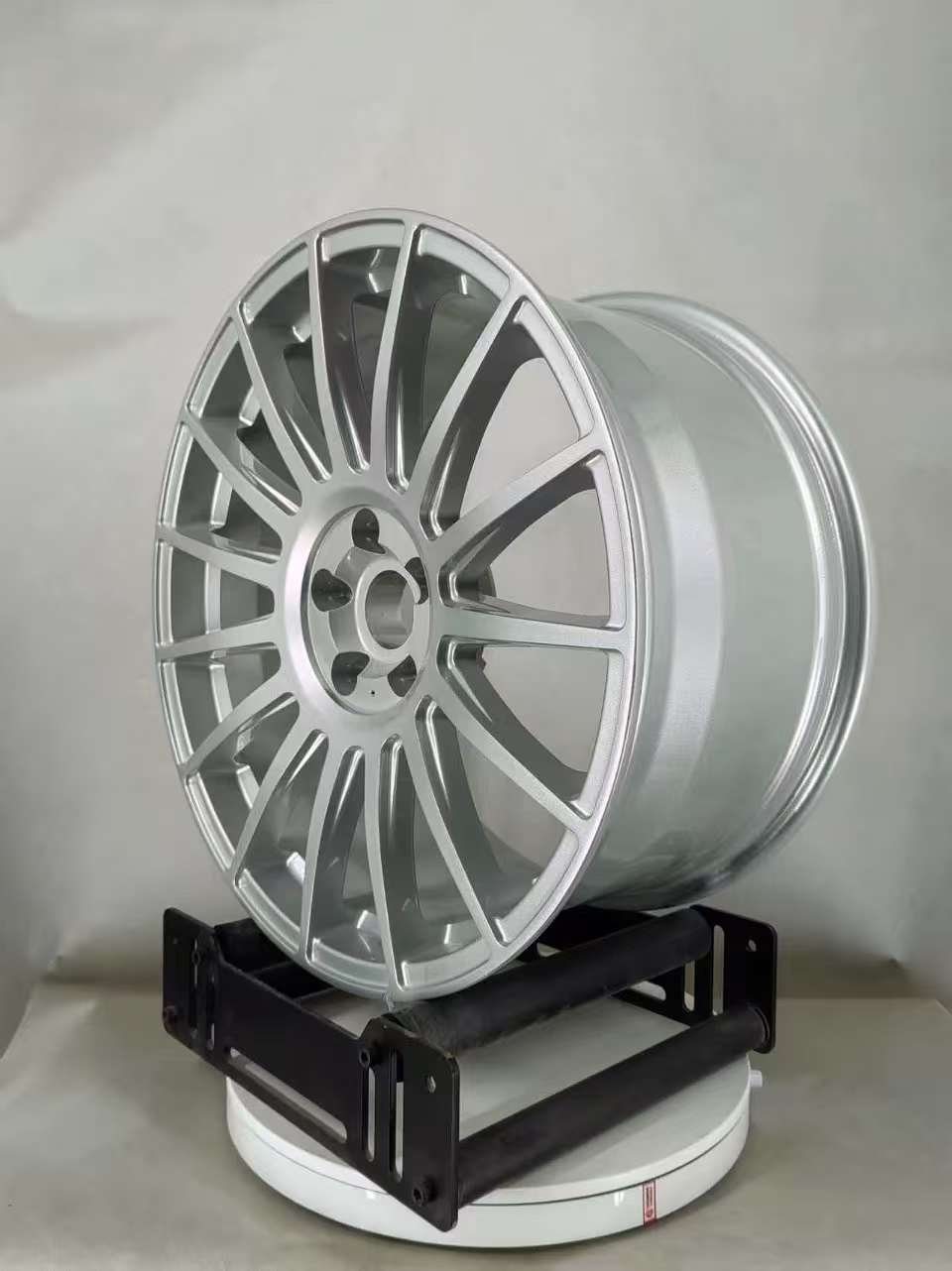

Multi-spoke rally-style wheel — Fifteen-spoke rally/racing pattern — strength through redundancy.

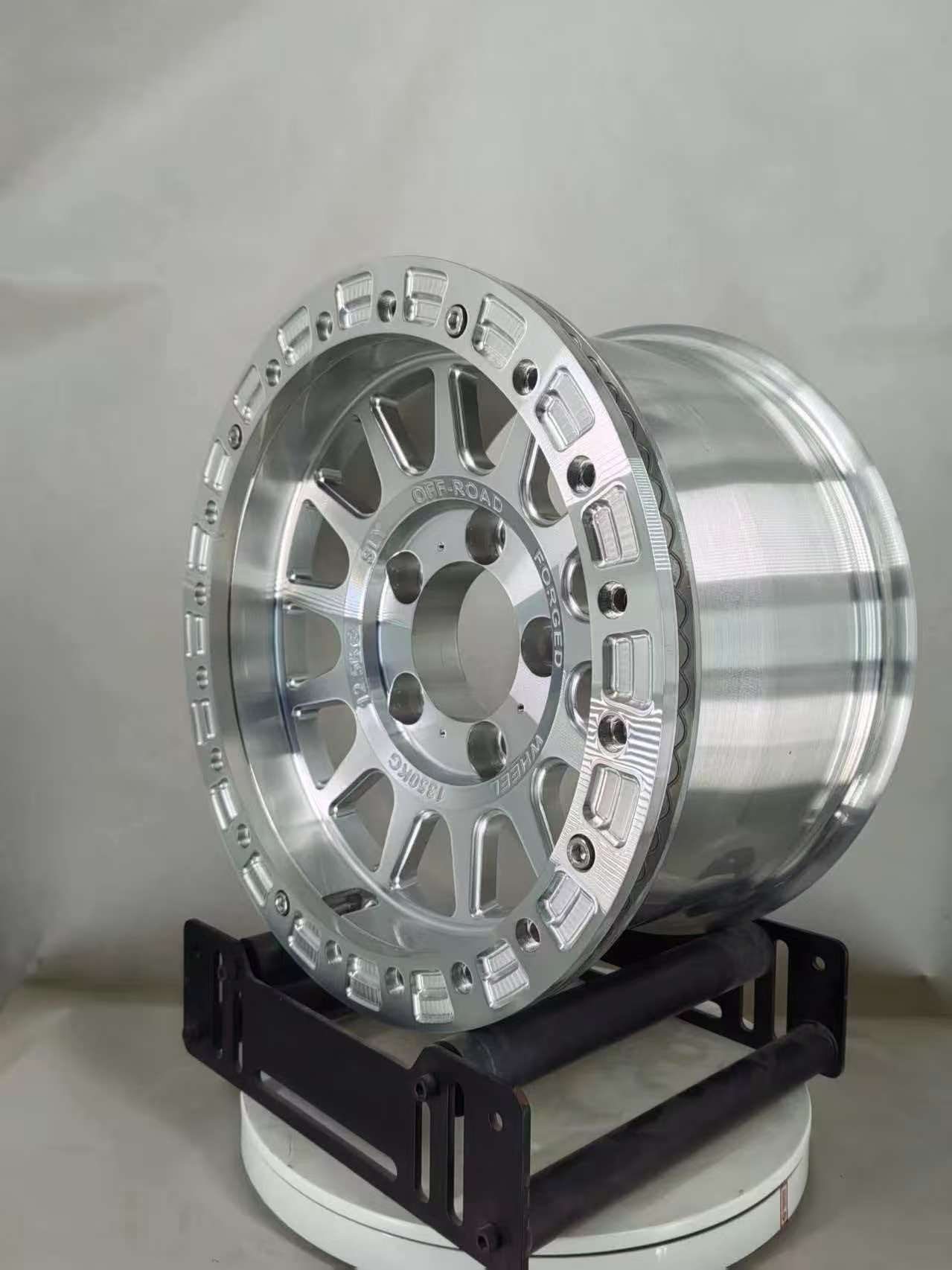

Beadlock off-road truck wheel — 17×9.0J beadlock-style truck wheel, 6×139.7 — load-rated for real work.

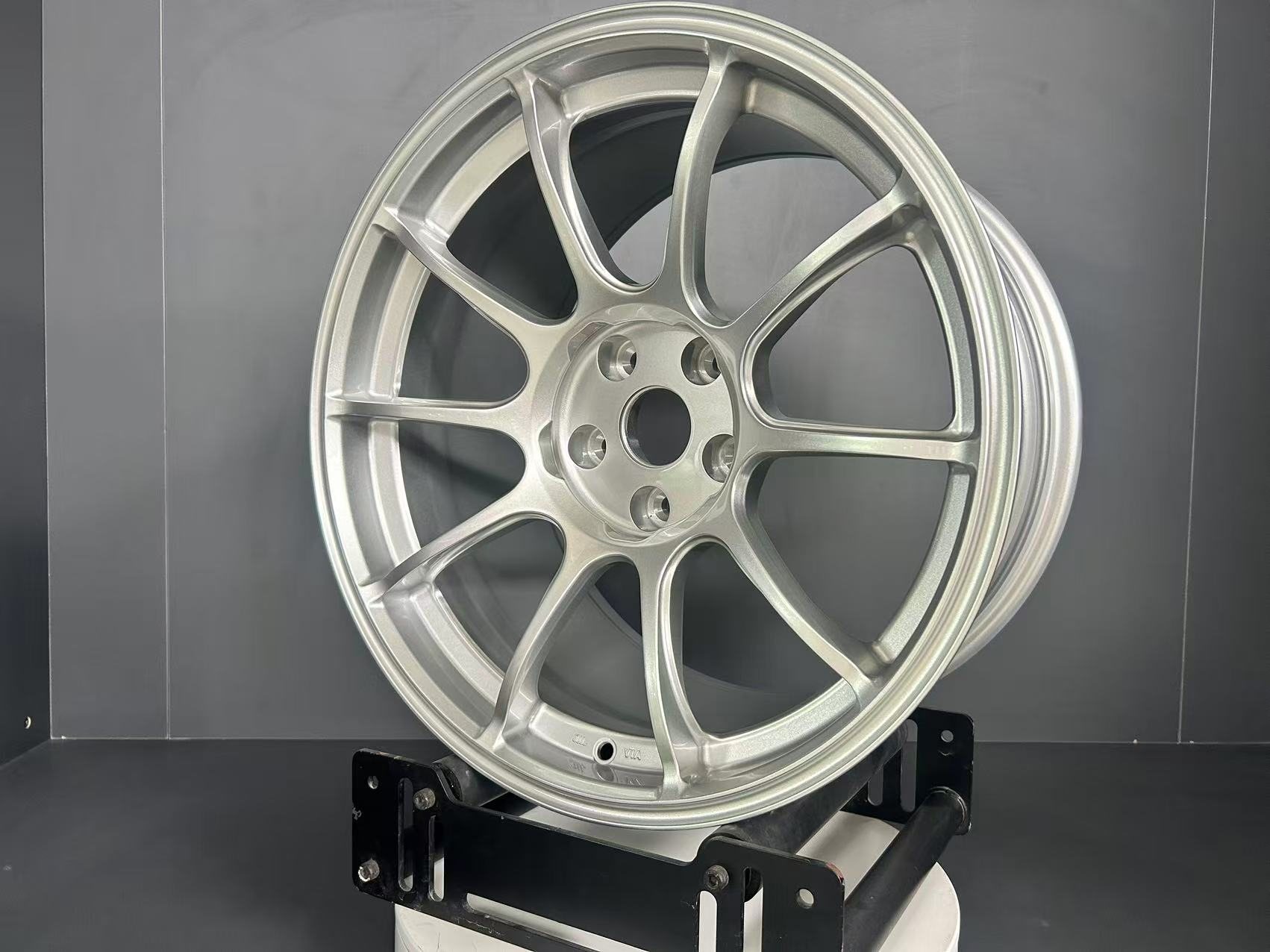

Ten-spoke street-performance wheel — Split-five street profile — the standard-fitment end of the range.

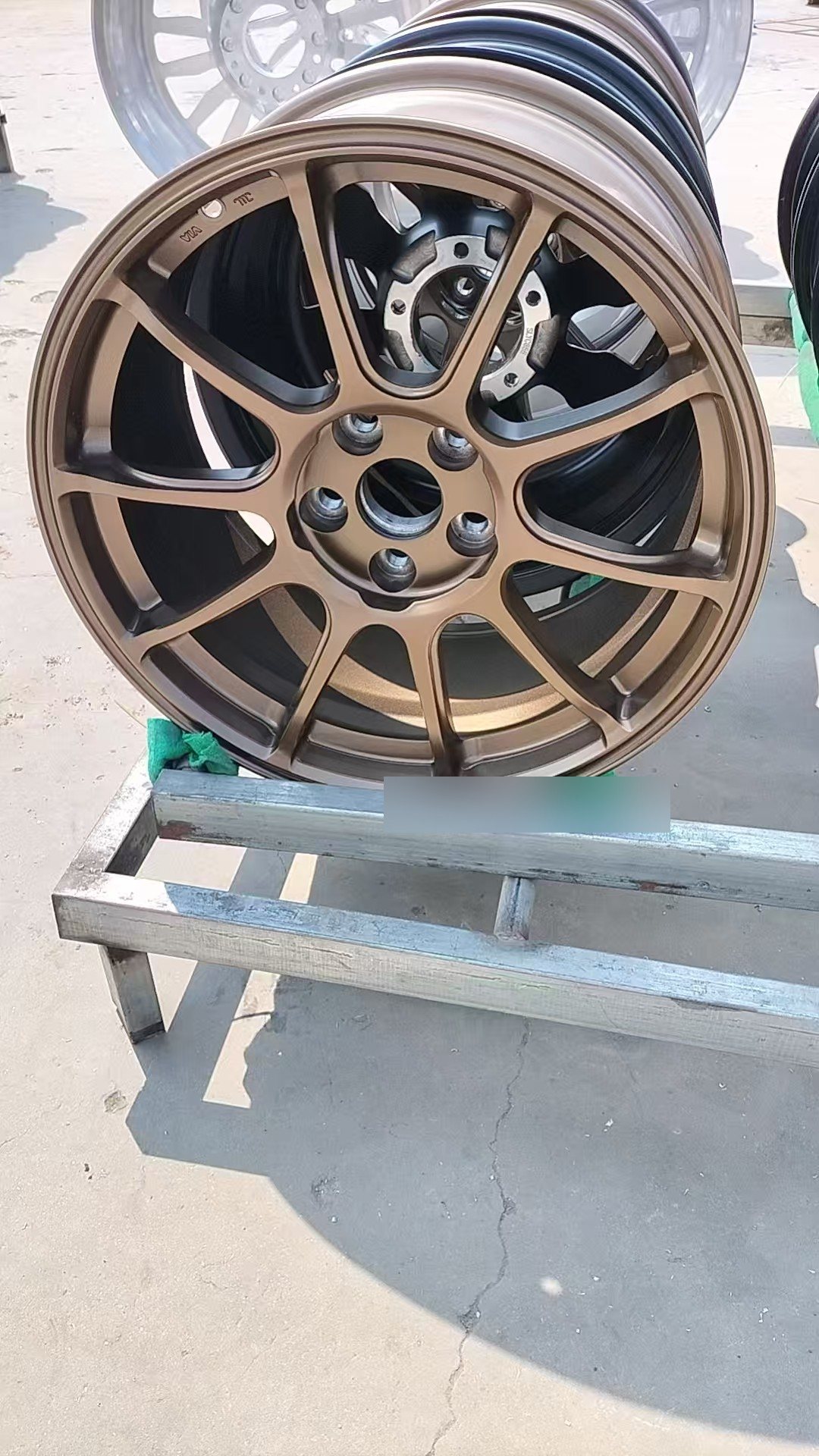

Bronze finished wheel with VIA/JWL certification — Custom finishes to order; VIA/JWL-certified test regime available.

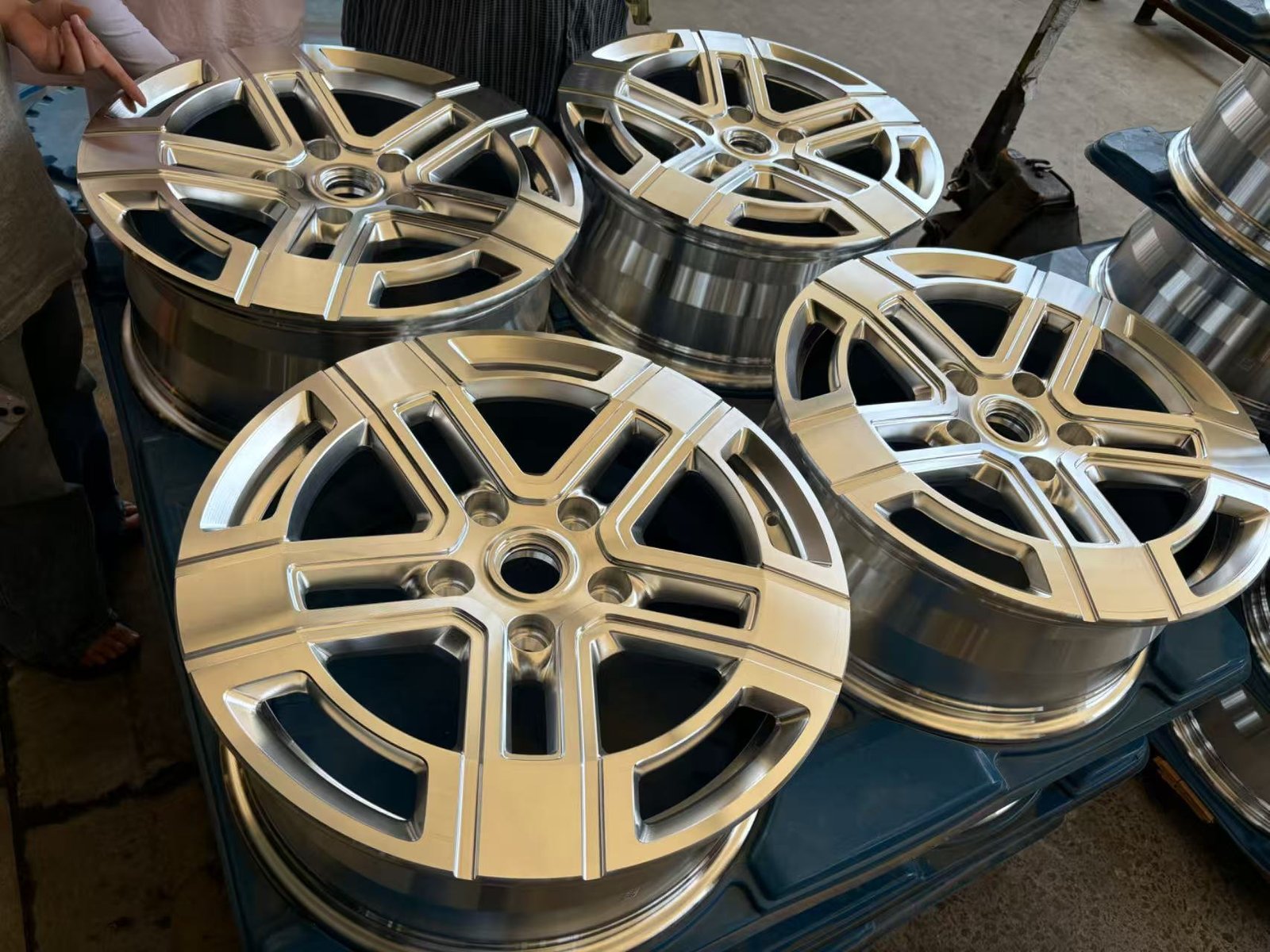

Set of champagne machined-face wheels — A matched set of machined-face wheels awaiting final inspection.

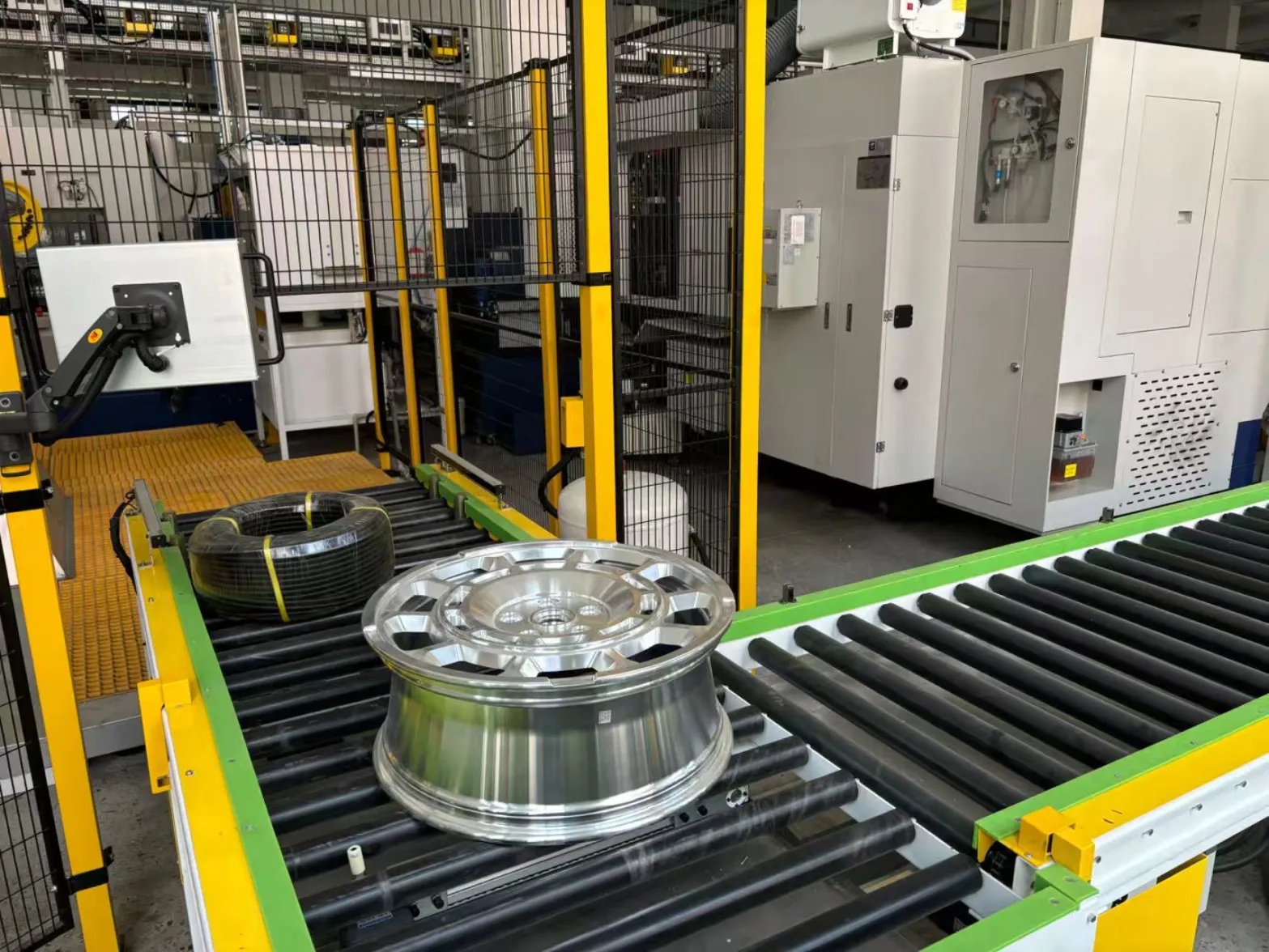

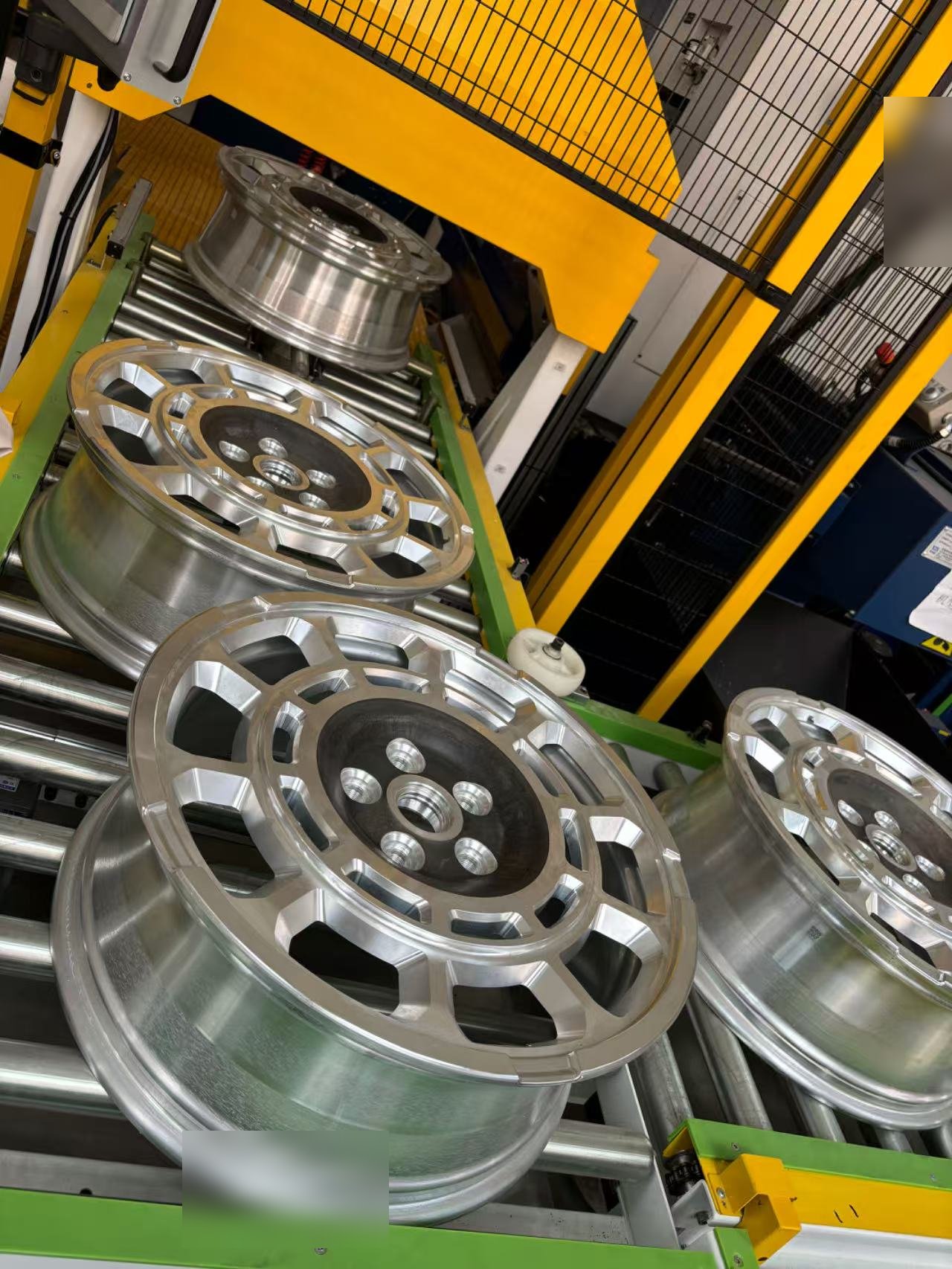

Machined wheels on the production conveyor — Wheels moving down the line between machining stages.

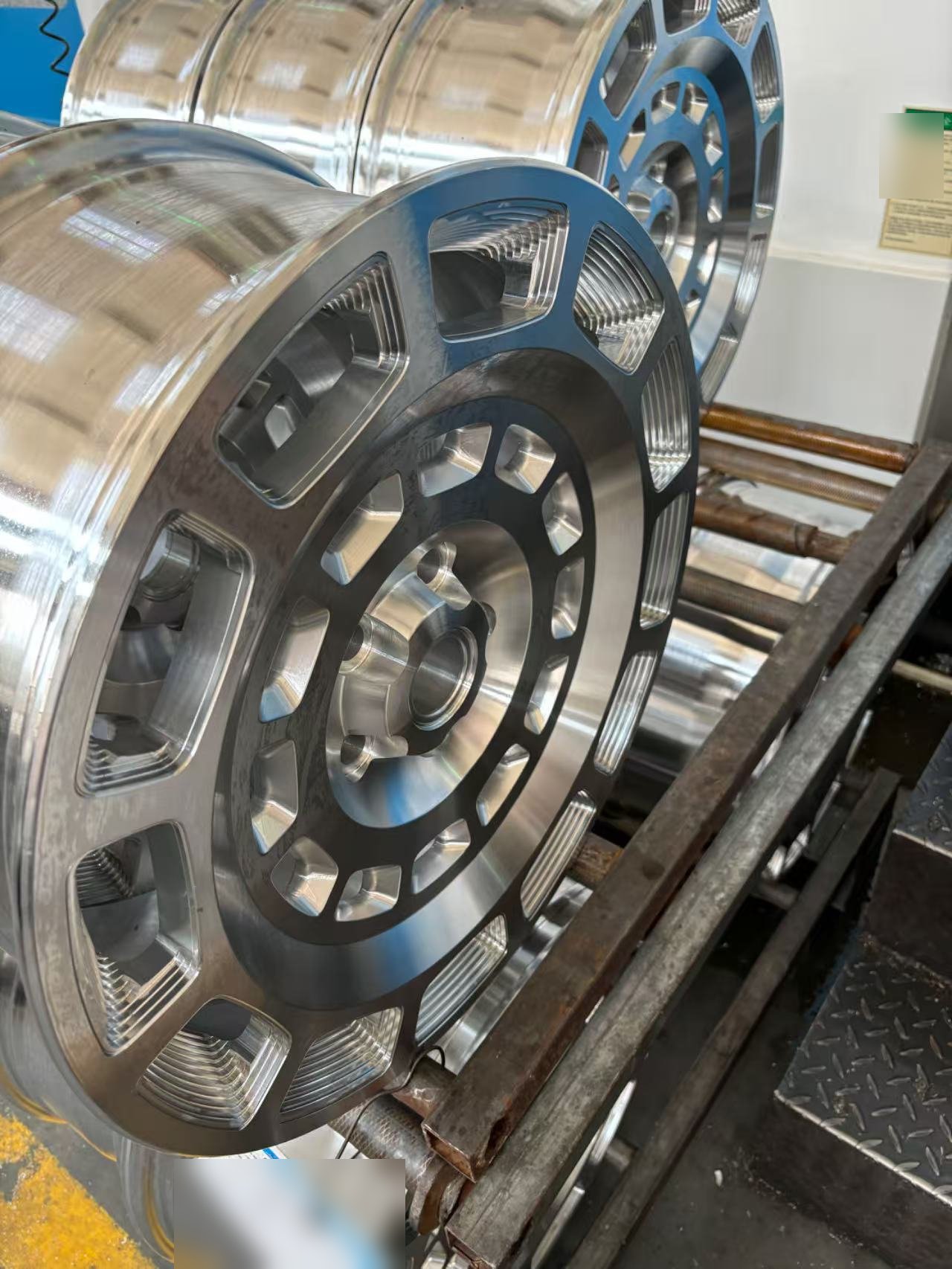

Machined wheel centers on the conveyor — Mirror-finish centers straight off the lathe.

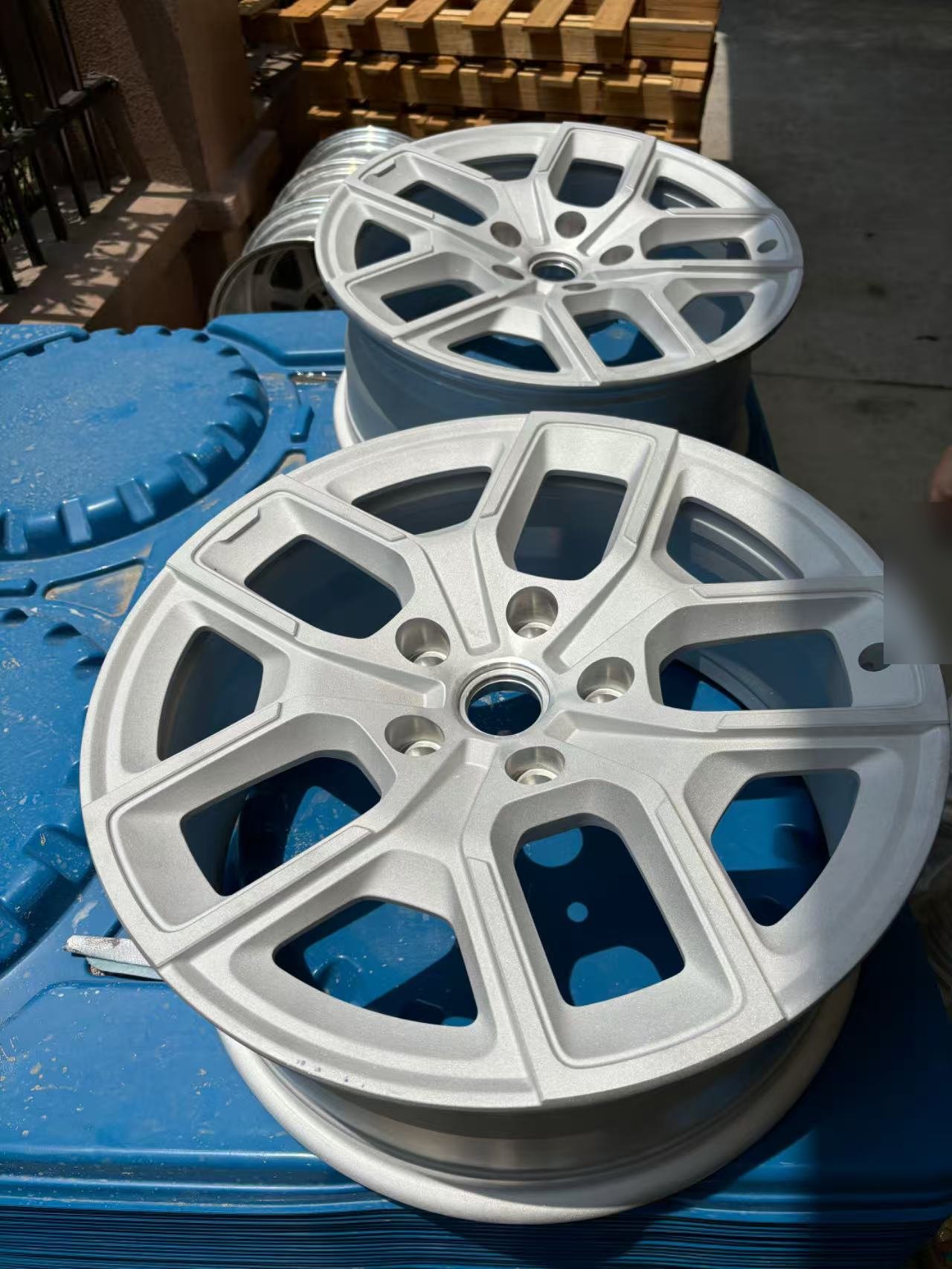

Silver machined wheels on a pallet — Batch output staged for coating and assembly.

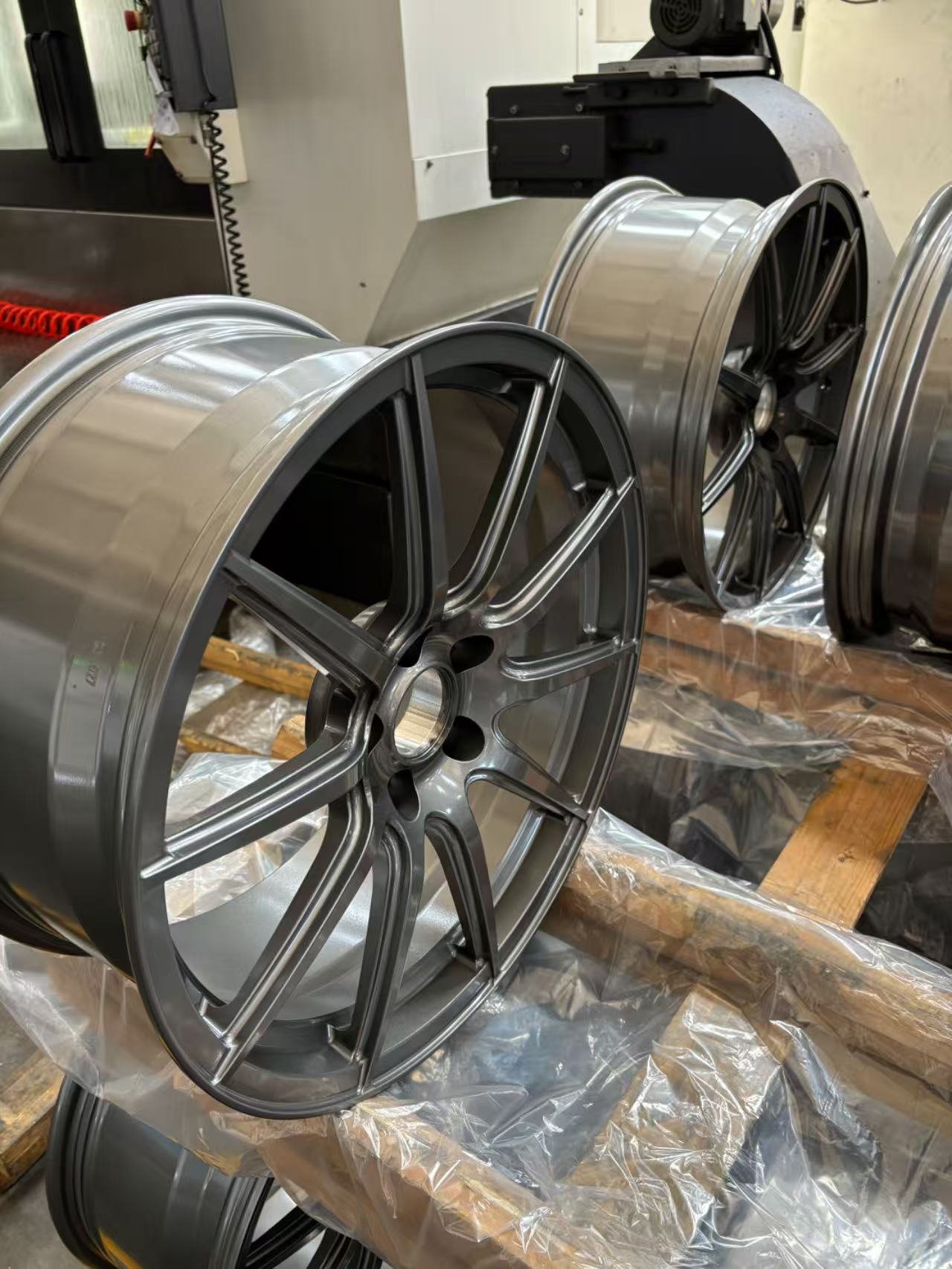

Gunmetal split five-spoke wheel — Gunmetal split-five, fresh from its final CNC pass.

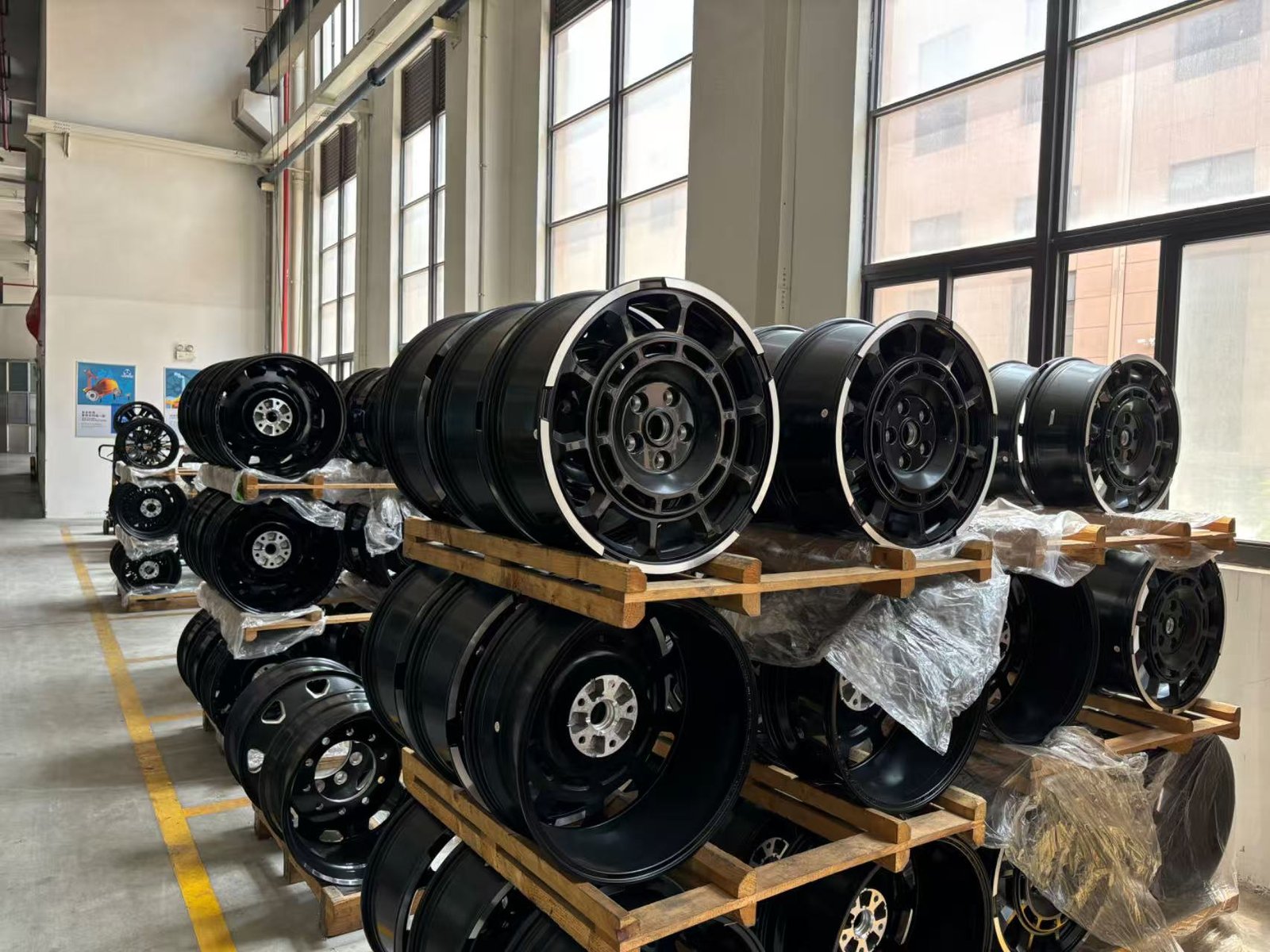

Warehouse racks of finished black wheels — Finished stock — the program runs at production scale.

Custom commissions open: any diameter 15–22 in., any PCD, center bore, offset, and finish — standard or deep-concave profiles, racing, street, and truck applications. Send your fitment sheet and we return a drawing.

Commission Custom Wheels →
